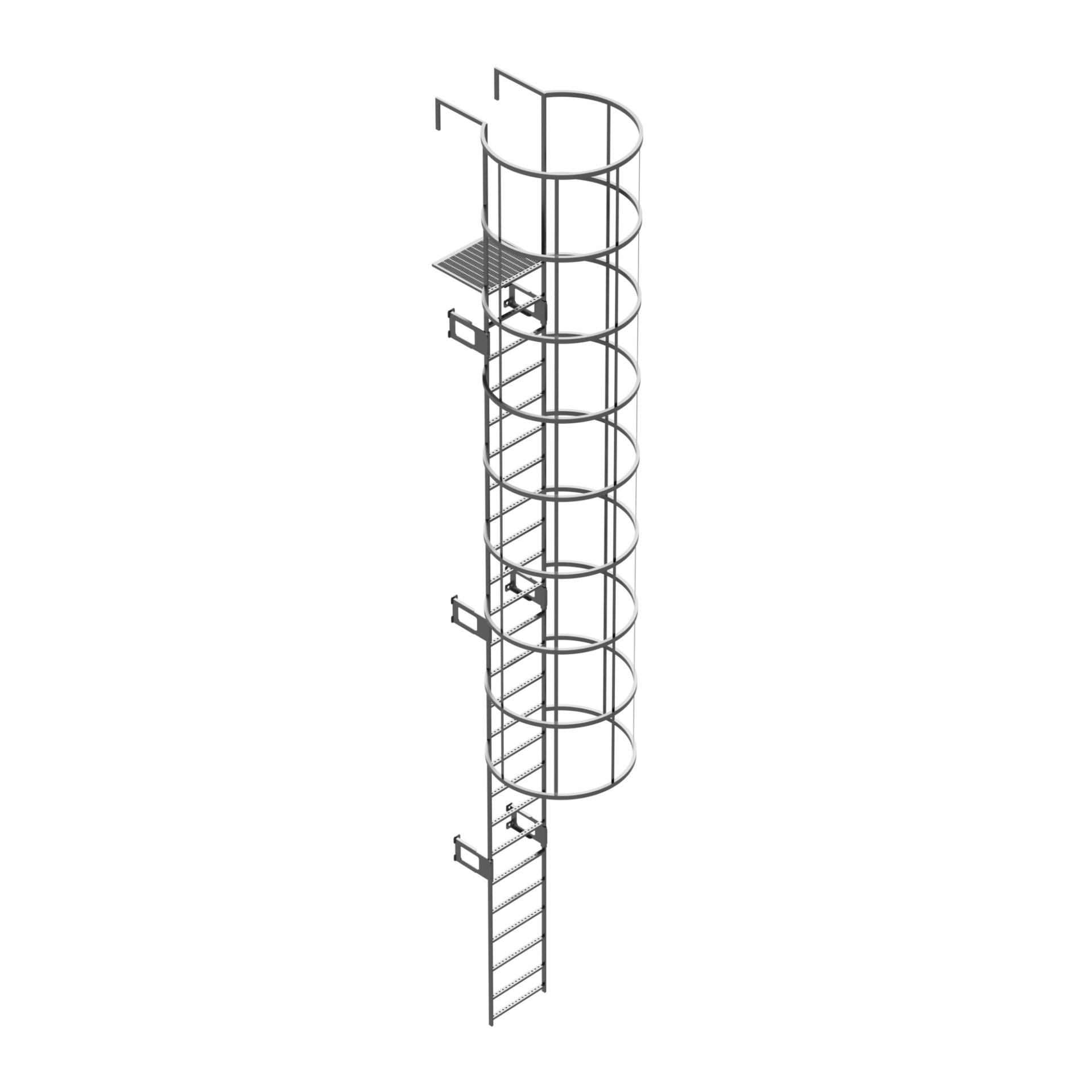

Evacuation ladder with safety basket and platform
Category: Ladders
Evacuation ladder with safety basket and platform is an advanced solution for safe access to places at height. Its steel construction ensures high durability and weather resistance. A built-in safety basket protects the user from falling, and an additional platform enables comfortable and safe entry or exit at the target level, such as the roof, balcony or technical ceiling. This ladder is ideal for industrial facilities, warehouse halls and public buildings where it is necessary to comply with health and safety and fire regulations and to provide a safe escape or service route.
Technical specifications
| Steel grade | S235 |
| Material standard | EN 10025 |
| Corrosion protection | Hot dip galvanizing / powder coating + hot dip galvanizing |
| Cross-section of side profiles | 50 × 30 × 1.5 mm |
| Weld class | C-B |
| Rungs | 30 × 30 × 2 mm, length L = 500 mm |
| Rung spacing | 275 mm (from top to bottom of rung) |
| Area of tiers | non-slip, perforated, holes 12.5 mm |
| Going above and beyond | 1,1 m |
| Basket starting height | 2,2 - 3,0 m |
Ladder length vs. installation height
Attention: The length you choose when purchasing is wall height. The ladder structure will project Above the wall (1.1 m) - the so-called exit above the level - to enable safe ascent or descent.
Example:
-
For a wall of height 9,0 m, the height of the ladder is approx. 10,1 m
-
About 1.1 m of the ladder is above the wall
Attention: the basket starts from the height base 2,2 - 3 m.
| Wall height (m) | Total ladder height (m) | Exit above horizontal (m) |
| 2,0 | approx. 3,1 | 1,1 |
| 3,0 | approx. 4,1 | 1,1 |
| 4,0 | approx. 5,1 | 1,1 |
| 5,0 | approx. 6,1 | 1,1 |
| 6,0 | approx. 7,1 | 1,1 |
| 7,0 | approx. 8,1 | 1,1 |
| 8,0 | approx. 9,1 | 1,1 |
| 9,0 | approx. 10,1 | 1,1 |
| 10,0 | approx. 11,1 | 1,1 |
Standards
The technical ladder meets the requirements of current health and safety standards and fire regulations, making it suitable for use as a permanent means of access in industrial, storage and commercial facilities. It has been designed and manufactured with reference to the following standards:
-
DIN14094-1 Fire protection. Evacuation ladders.
-
DIN18799-1 Ladders permanently fixed to building structures.
-
PN-EN ISO 14122-4 Machine safety, permanent means of access to machines.
-
Ladder made of steel, meeting standard EN 10025.
Quality and conditions of purchase

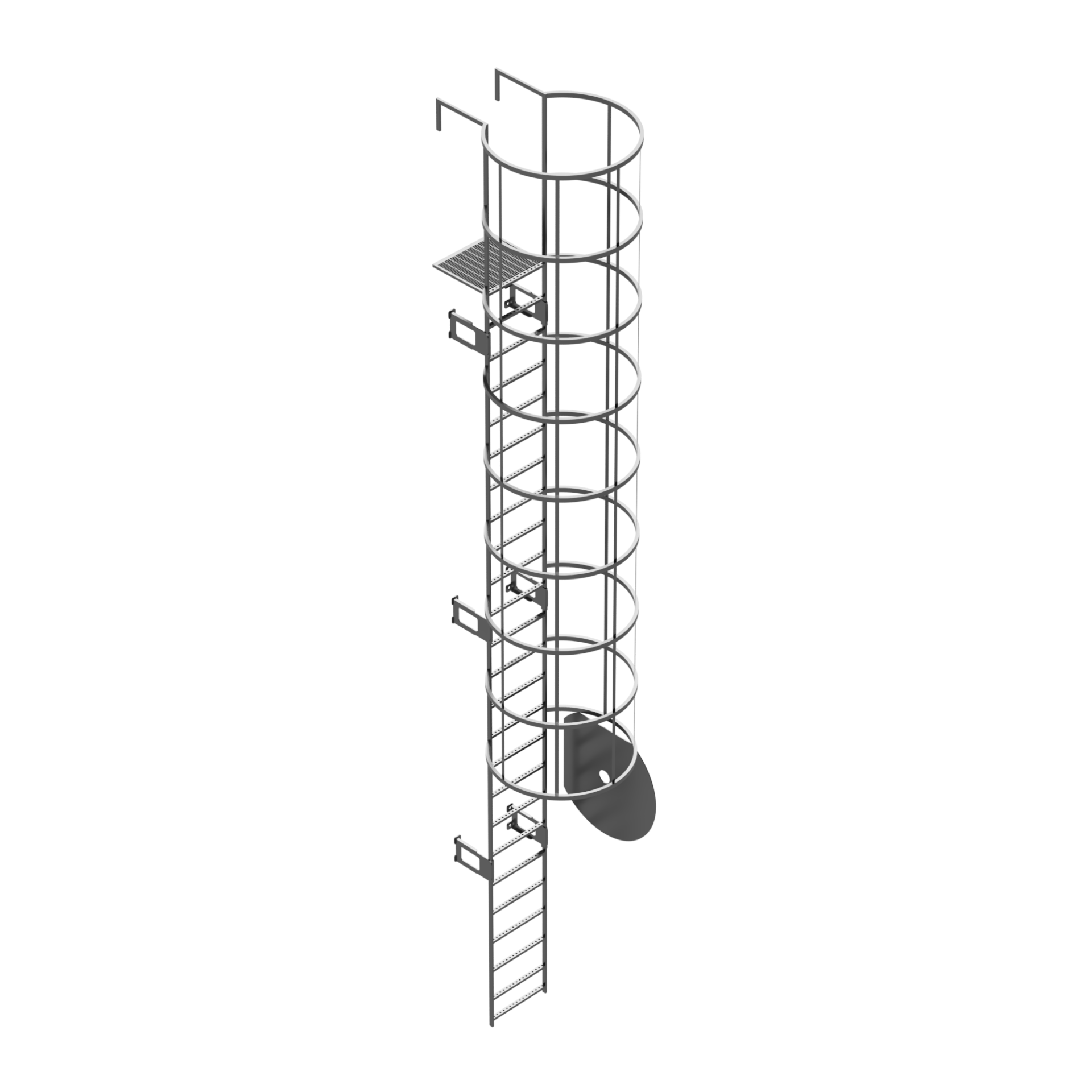

The product is also available in other variants (without basket / with protective basket / with basket and passage over the attic). We offer reliable and durable solutions that meet the expectations of the most demanding customers in the industrial and logistics sector.
-
Attractive delivery terms throughout Poland and the EU
-
Price negotiations possible for larger orders
-
Various forms of payment
Additional options and associated products
Within this category we also offer:
-
Scaffolding: Scaffolding
-
Articulated ladders: Articulated ladders
-
Multi-purpose ladders: Multi-purpose ladders
-
Steps and work platforms: Steps and working platforms
Contact us
Are you looking for a tailored solution or want to order a larger quantity of escape ladders with basket and platform? Contact our technical advisor 534 983 804for a personalised quote and professional support in selecting the best security system.
-
